¶ Armament
Although the A-10 can carry a considerable amount of munitions, its primary built-in weapon is the 30×173 mm GAU-8/A Avenger autocannon. One of the most powerful aircraft cannons ever flown, it fires large depleted uranium armor-piercing shells. The GAU-8 is a hydraulically driven seven-barrel rotary cannon designed specifically for the anti-tank role with a high rate of fire. The cannon's original design could be switched by the pilot to 2,100 or 4,200 rounds per minute; this was later changed to a fixed rate of 3,900 rounds per minute. The cannon takes about half a second to reach top speed, so 50 rounds are fired during the first second, 65 or 70 rounds per second thereafter. The gun is accurate enough to place 80 percent of its shots within a 40-foot (12.4 m) diameter circle from 4,000 feet (1,220 m) while in flight. The GAU-8 is optimized for a slant range of 4,000 feet (1,220 m) with the A-10 in a 30-degree dive.
The fuselage of the aircraft is built around the cannon. The GAU-8/A is mounted slightly to the port side; the barrel in the firing location is on the starboard side so it is aligned with the aircraft's centerline. The gun's 5-foot, 11.5-inch (1.816 m) ammunition drum can hold up to 1,350 rounds of 30 mm ammunition, but generally holds 1,174 rounds. To protect the GAU-8/A rounds from enemy fire, armor plates of differing thicknesses between the aircraft skin and the drum are designed to detonate incoming shells.
The AGM-65 Maverick air-to-surface missile is a commonly used munition for the A-10, targeted via electro-optical (TV-guided) or infrared. The Maverick allows target engagement at much greater ranges than the cannon, and thus less risk from anti-aircraft systems. During Desert Storm, in the absence of dedicated forward-looking infrared (FLIR) cameras for night vision, the Maverick's infrared camera was used for night missions as a "poor man's FLIR". Other weapons include cluster bombs and Hydra 70 rocket pods. The A-10 is equipped to carry GPS- and laser-guided bombs, such as the GBU-39 Small Diameter Bomb, Paveway series bombs, Joint Direct Attack Munitions (JDAM), Wind Corrected Munitions Dispenser and AGM-154 Joint Standoff Weapon glide bombs. A-10s usually fly with an ALQ-131 Electronic countermeasures (ECM) pod under one wing and two AIM-9 Sidewinder air-to-air missiles for self-defense under the other wing.

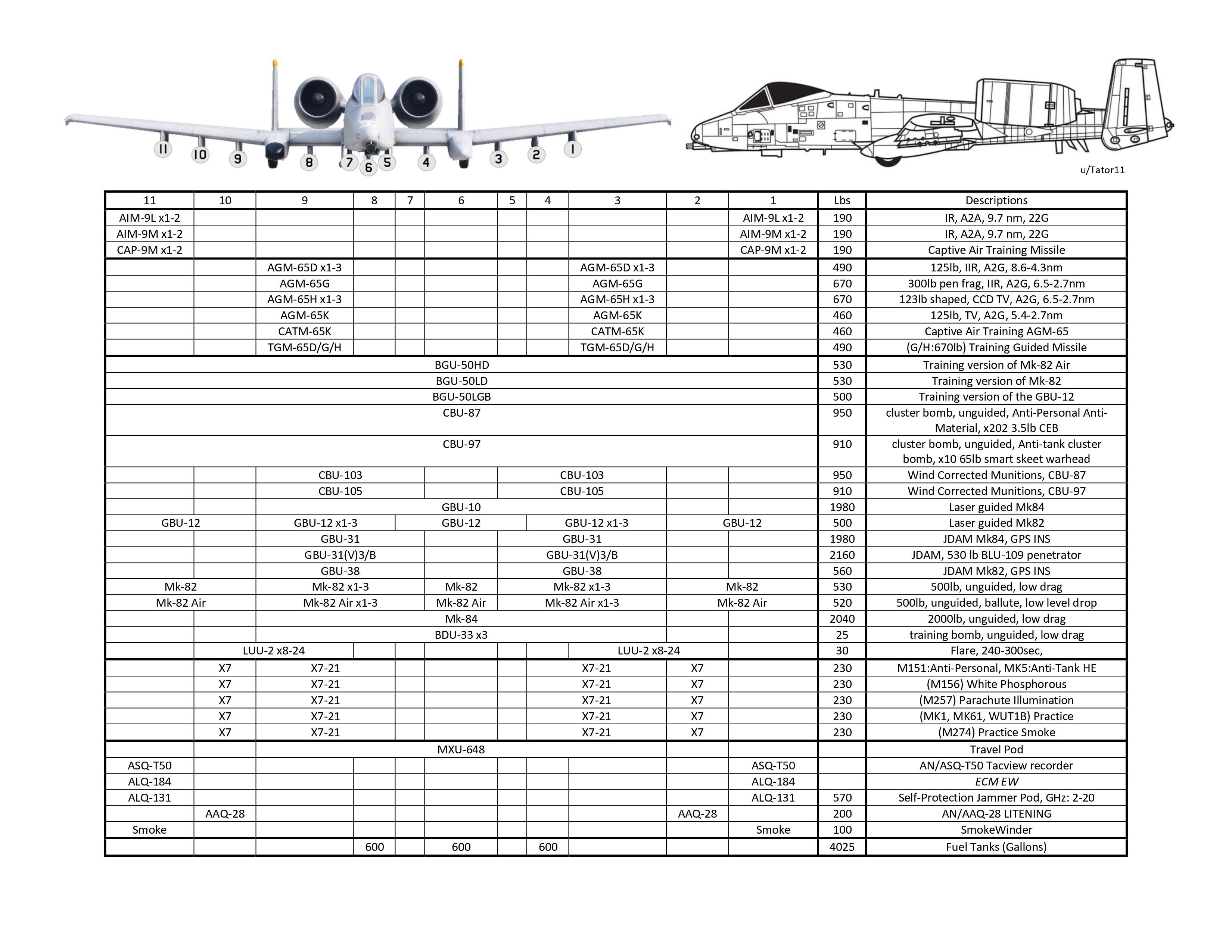

¶ A-10C Weapon Loadout Chart
